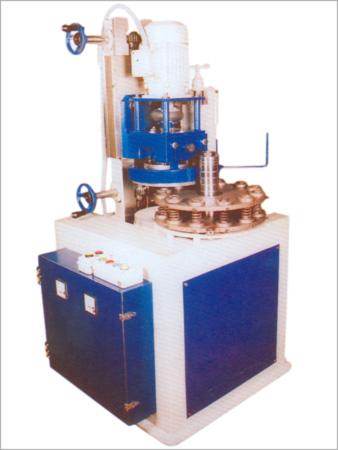

Spring End Grinder

Spring End Grinder

Product Details:

X

Product Description

Features:
Air Cooling
Dry Grinding
Standard Dressing Arm
Optional Custom Made Grinder, Dust Colllector etc.
Specifications:
Wire Capacity (mm)                                           1-4
Max. O.D. (mm)                                                 35
Max. Spring Length                                            250mm
Stone Dimensions (BxDxT)                                   38x300x38
Stone Nos.                                                        2
Max Loading Plate OD                                         430 mm

Machine Dimensions (mm)
                                  L                                   800
                                  W                                  900
                                  H                                   1600
Weight (Kgs. Approx.)                                           1000
Power Consumption (h.p.)                                     5
Power                                                                220v, 3 diameter.




Torsion Spring
Torsion Spring




Contact Details
RELIABLE SPRING INDUSTRY
GST : 36AAEFR7997M1Z7
Plot No.30/A, Phase-III, IDA, Jeedimetla,Hyderabad - 500055, Telangana, India
Phone:View Number
Send Inquiry
Key Personnel
Mr. Iqbal Taher Vadnagarwala (PARTNER)
